Company Profile

Chainson Aluminum Co., Ltd specializes in the research, development, and manufacturing of various high-strength aluminum alloy materials.

We produce alloys ranging from the 1000 series to the 7000 series, with particular recognition for our high-strength 2000, 5000, and 7000 series alloys.

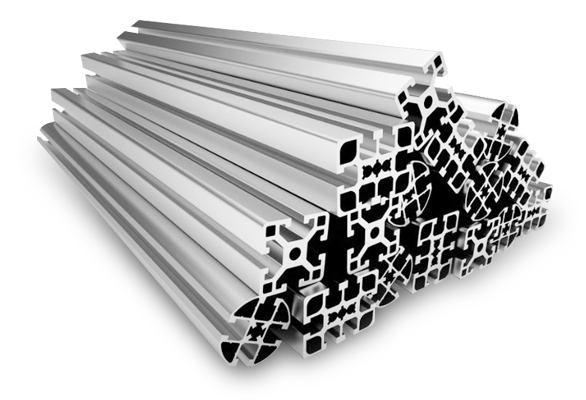

Our aluminum products include seamless and welded pipes, as well as extrusions, which are primarily used in aerospace, optical lenses, defense, shipbuilding, sports equipment, and specialized materials.

Our products are distributed across Asia, Europe, North America, and South Africa.

Product Specifications

Common Alloys/Properties	Alloy	Properties
Non-Heat Treatable	1050、1100、3003、5051、5052、5456、5083、5086、5052、5056、5754、5049	F、O、H111、H112、H116、H14、H18、H32、H34、H36、H38
Heat Treatable	2007、2011、2014、2017、2024、2030、6013、6020、6060、6061、6063、6066、6070、6082、7005、7003、7001、7049、7075、7050	F、O、T3、T4、T5、T6、T8、T351、T3511、T451、T4511、T651、T6511、T73、T7351、T74、T76、T83、T851、T9
Standards	ASTM, AMS, ASME, JIS, DIN, EN, Customer Specifications	-

Specification Description

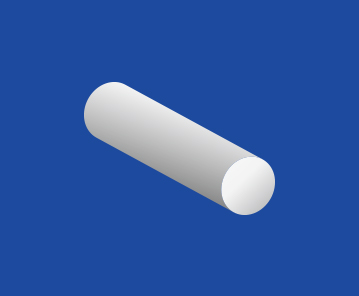

Rod

Size
4mm/0.157" to 177.8mm/7"

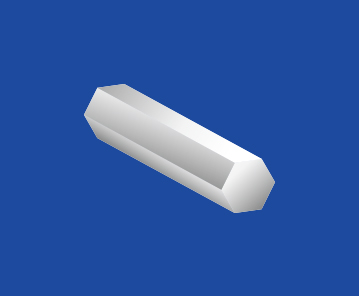

Hex Rod

Size
6mm/0.236" to 60mm/2.36"

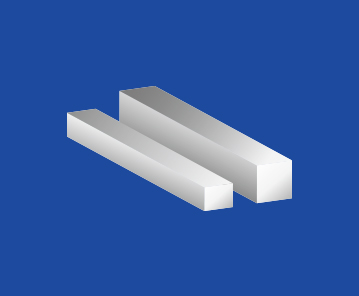

Bar

Size
4 X 4mm/0.157" X 0.157" to 120 X 40mm/4.72" X 1.57"

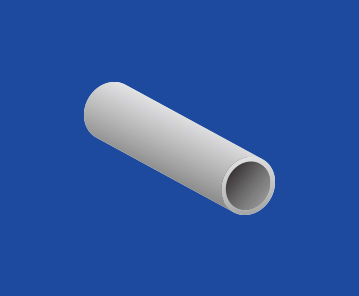

Tube (Seamless / Seamed)

Size
OD 4mm/0.157" to 120mm/4.724"
thick: 0.5/0.019" to 100mm/3.937" min.

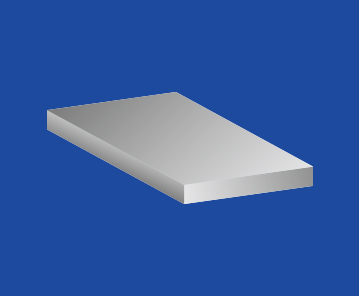

Plate

Size
Width: to 210mm/8.267" thick: to 60mm/2.362"

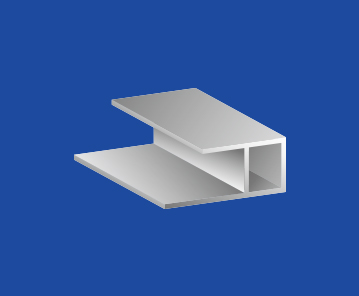

Irregular Shape

Size
Diagonal: Max 320mm/12.598"

Product Applications

Aluminium Alloy Applications

Industry	Series of Alloy	Application
Aerospace	2000、5000、6000、7000	Seat Track / Helicopter Component / Instrument panel...etc
Automotive	1000、2000、3000、4000、5000、6000、7000	Piston / Condenser / Auto parts / Suspension tubes / Handle /Front forks...etc
Marine	5000、6000	Hull structure / Transportation Tube...etc
Sport	2000、5000、6000、7000	Bicycle componenet / snowshoes / Ski Pole / Baseball bat / Carabiner / Golf Stick...etc
Medical	6000、7000	Stretcher / Wheelchair / Laser knife...etc
Optical	3000、5000、6000	Camera body/ Camera Lens Barrel / Telescope / Projector...etc
Commercial & Others	2000、5000、6000、7000	Electrical part / Bridge construction / Loadcell / Military equipment...etc

Quality Control

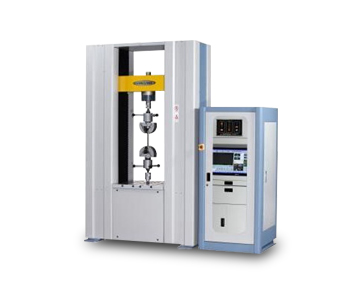

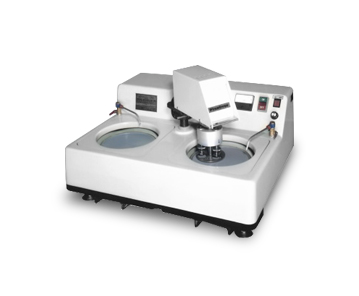

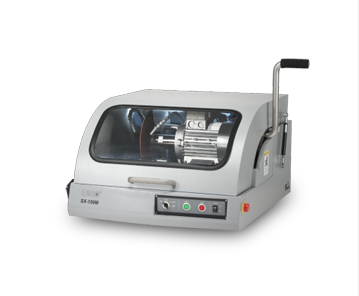

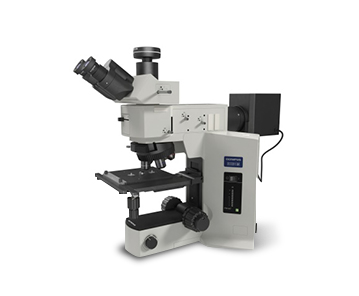

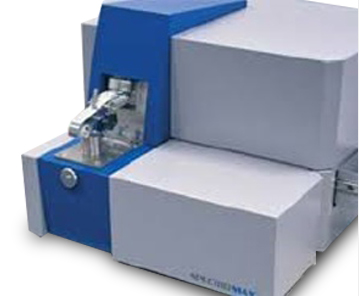

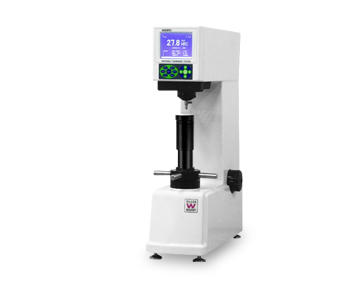

Aluminum Lab Equipment

Our company is strongly committed to product quality. We have established a dedicated aluminum alloy laboratory within the company to continuously test our products, aiming to achieve both research and development and quality inspection objectives.
