The outer layer is coated with high-density polyethylene (HDPE) using a heat-extrusion process, offering excellent corrosion resistance.
It can be manufactured to the required length in the factory, eliminating the need for onsite splicing. Additionally, it has a low unit weight and is easy to install, which helps to reduce construction costs.

The anchor ends use a nut-locking mechanism, providing sufficient thread length for adjustable length.

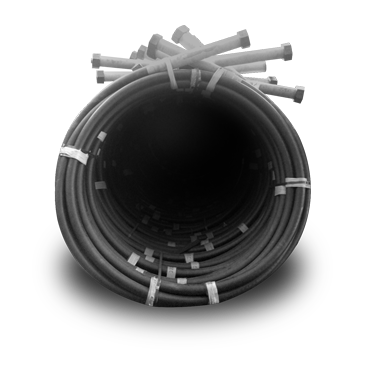

Packaging

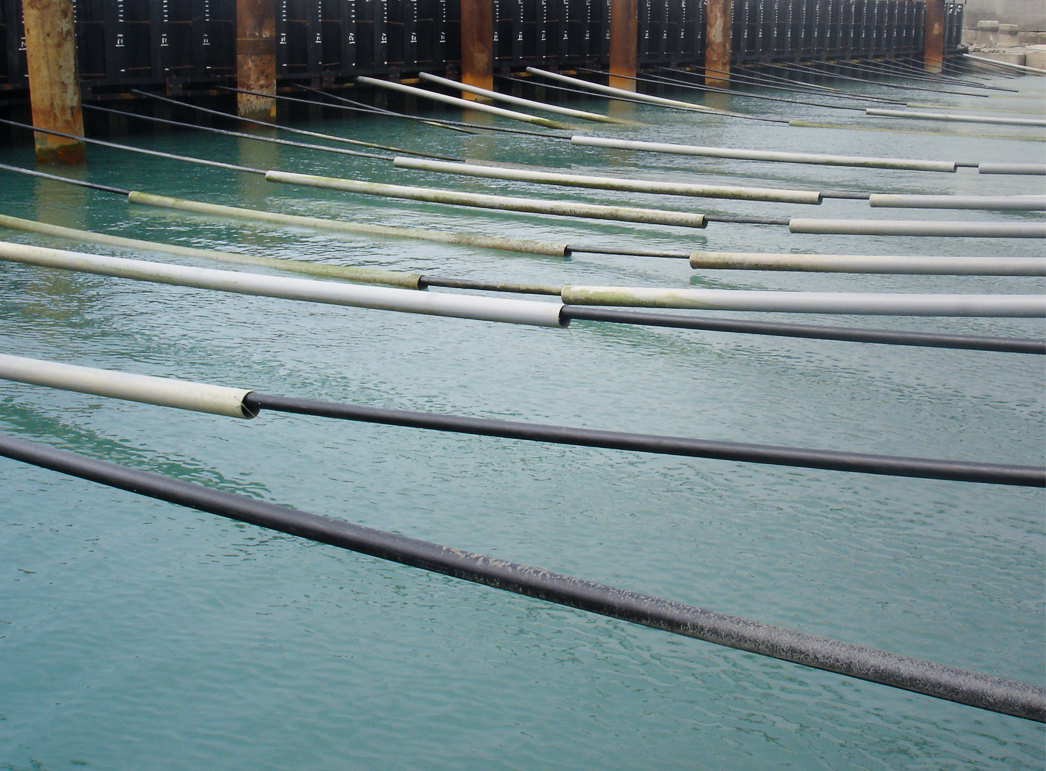

Made from low-relaxation 7-wire PC steel strand conforming to CNS 3332 G3073 standards. These strands are bundled into cables composed of either 7 or 19 PC steel strands, used as back-stay material for sheet piles in harbor engineering.
The internal steel wires enhance tensile strength.

Utilizes low-relaxation 7-wire PC steel strand conforming to CNS 3332 G3073 standards, with an outer layer coated in high-density polyethylene (HDPE).
The anchor ends are made from high-strength alloy steel (SCM440) and processed into thick anchor sleeves. The steel strands and anchor sleeves are integrated in a single axial extrusion process using specialized machinery. After extrusion, threads are machined onto the outer surface of the anchor sleeves, and the anchors are secured with nuts

Component	Specification	Symbol
Steel Strand	Prestressed steel strand ASTM A416 or CNS 3332	-
Anchor Sleeve	Chrome-molybdenum alloy steel CNS 3229	SCM440
Coating Material	High-density polyethylene (HDPE)	-
Nut	Medium carbon steel CNS 3828	S45C

Note: The F-200T, F-270T, F-360T, and F-500T models have additional steel wires inside to increase tensile strength.

Item		Unit	F-70T	F-100T	F-130T	F-170T	F-200T	F-270T	F-360T	F-500T
Composition		mm	7×Ø9.5	7×Ø11.1	7×Ø12.7	7×Ø15.2	19×Ø9.5	19×Ø11.1	19×Ø12.7	19×Ø15.2
Standard Diameter		mm	28.5	33.3	38.1	45.6	47.5	55.5	63.5	76
Cross-Section Area		mm²	383.9	519.5	691.0	970.9	1042.0	1409.6	1875.5	2635.3
Unit Weight	Steel Strand	kg/m	3.04	4.09	5.45	7.75	8.20	11.02	14.71	20.92
Unit Weight	Including Coating Material	kg/m	3.65	4.92	6.54	9.82	10.47	13.64	17.83	23.76
Breaking Load		tf	72.8	98.5	130.6	186.2	197.6	267.9	355.3	485.3
Yield Load		tf	62.0	84.2	111.3	158.4	168.1	228.5	302.1	425.9
Allowable Load	Permanent	t	24.8	33.7	44.5	63.4	67.2	91.4	120.8	170.4
Allowable Load	During Earthquake	t	37.2	50.5	66.8	95.0	100.9	137.1	181.3	225.5
Cross-Section		mm

Item	Unit	F-70T	F-100T	F-130T	F-170T	F-200T	F-270T	F-360T	F-500T
Dm	mm	55.4	62	68	78	82	94	120	140
Lm1	mm	300	390	440	500	500	500	500	500
Lm2	mm	410	485	580	675	680	720	770	1250
S	mm	65	71	77	87	93	106	123	142
Weight	kg	6.3	8.9	12.2	18.8	20.0	28.2	42.7	106.5

Item	Unit	F-70T	F-100T	F-130T	F-170T	F-200T	F-270T	F-360T	F-500T
D1	mm	150	150	150	180	180	180	180	180
D2	mm	50	50	50	77	77	77	77	77
S	mm	15	15	15	20	20	20	20	20
R	mm	510	510	510	560	560	560	560	560
L1	mm	200	200	200	220	220	220	220	220
L2	mm	100	100	100	100	100	100	100	100
L	mm	300	300	300	320	320	320	320	320
Material	-	Rigid Polyethylene

Item	Unit	F-70T	F-100T	F-130T	F-170T	F-200T	F-270T	F-360T	F-500T
a	mm	280	310	310	320	530	590	600	680
b	mm	280	310	310	320	530	590	600	680
c	mm	65	71	78	88	94	105	130	150
d	mm	19	19	22	25	28	32	36	40
e	mm	100	110	110	120	130	140	150	180
