Suspension Bridge: Design, Planing and Refurbishment

Suspension Bridge Type

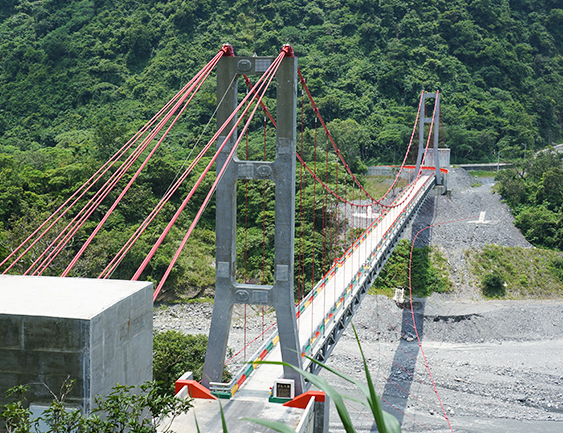

Bridge tower type suspension bridge

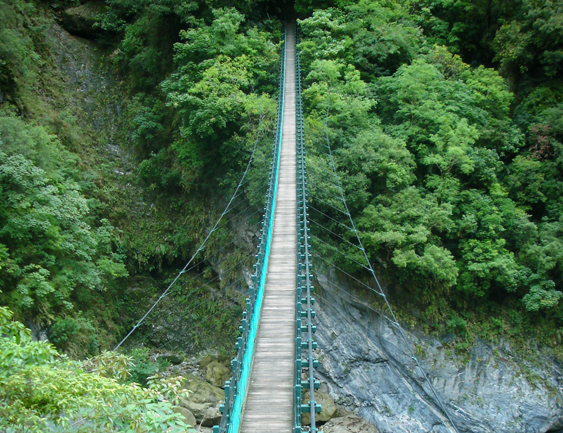

Hammock type suspension bridge (without bridge towers)

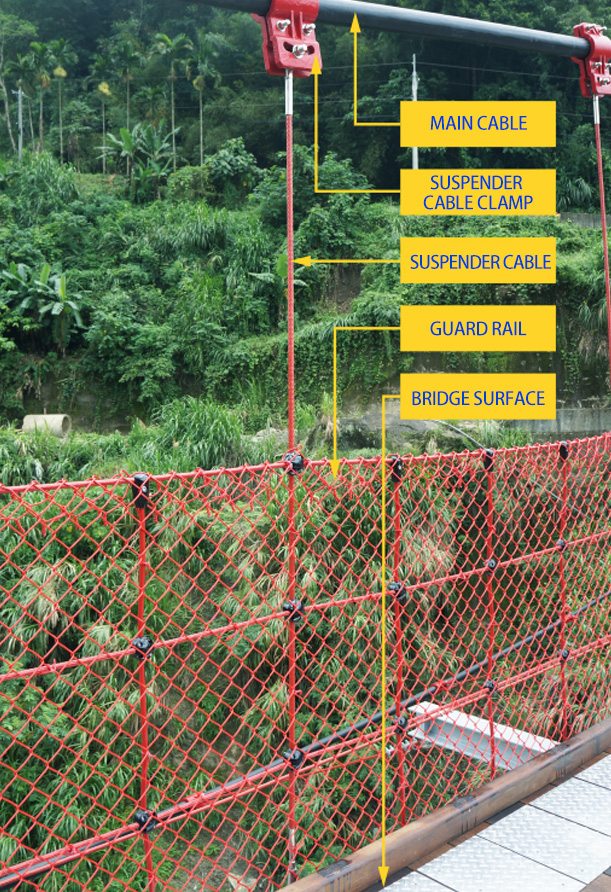

Main Combonents

Bridge Tower

Main Cable

Wind-resistant main Cable

Anchor block

Main cable saddl

Guardrail

Suspender cable

Wind-resistant cable

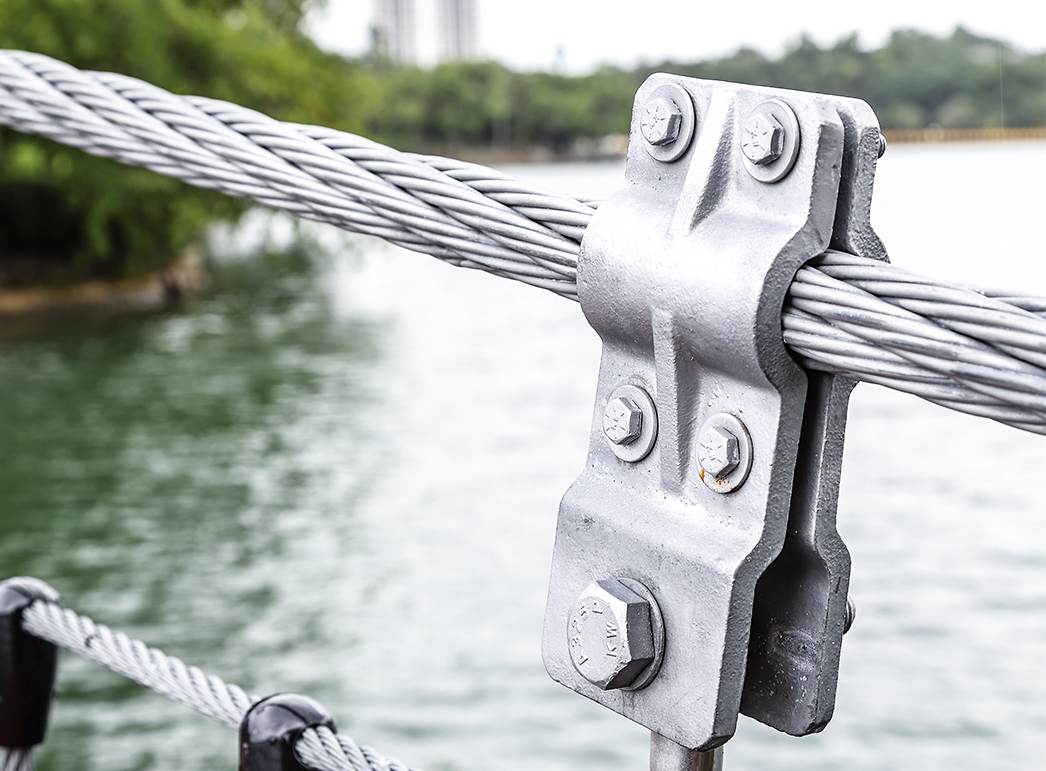

Suspender cable clamp

Bridge deck system

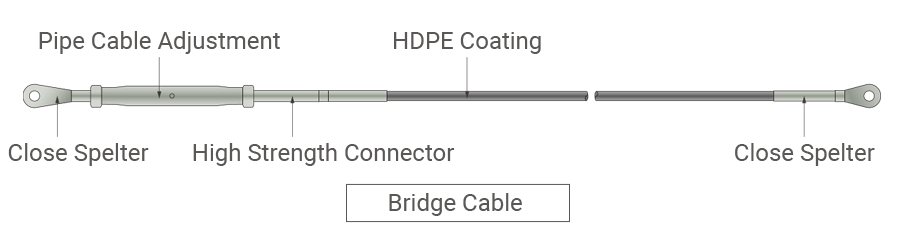

Main Cable, Wind-resistant Main Cable

Our company primarily provides galvanized steel strands with an outer layer coated in high-density polyethylene (HDPE). For detailed specifications, please refer to the "Bridge Cables" section in this catalog.

Suspender Cable, Wind-resistant Stay Cable, Guardrail Cable

Typically, galvanized steel cables with diameters ranging from 10mm to 16mm are used. These cables are coated with high-density polyethylene (HDPE) or PVC for corrosion resistance. The outer layer color can be selected based on local environmental conditions or overall design. Custom production is also available according to design specifications or customer requirements.

In addition to producing suspension bridge materials, our company, with extensive experience from numerous projects over the years,

can assist with the overall planning and design of suspension bridge projects.
We also offer suggestions for the refurbishment of old suspension bridges and provide suspension bridge inspection services.

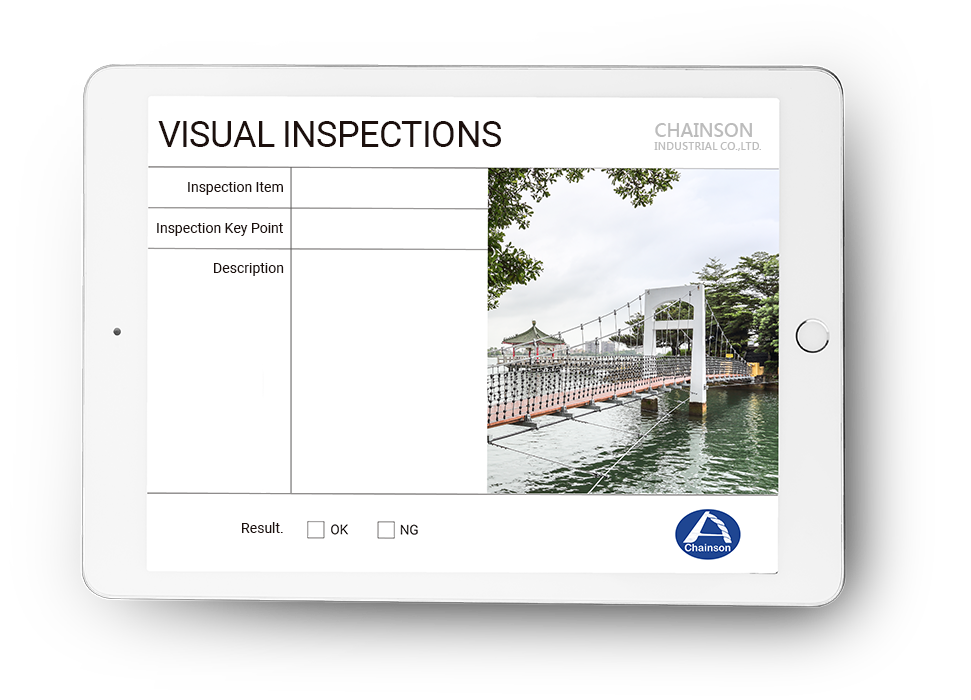

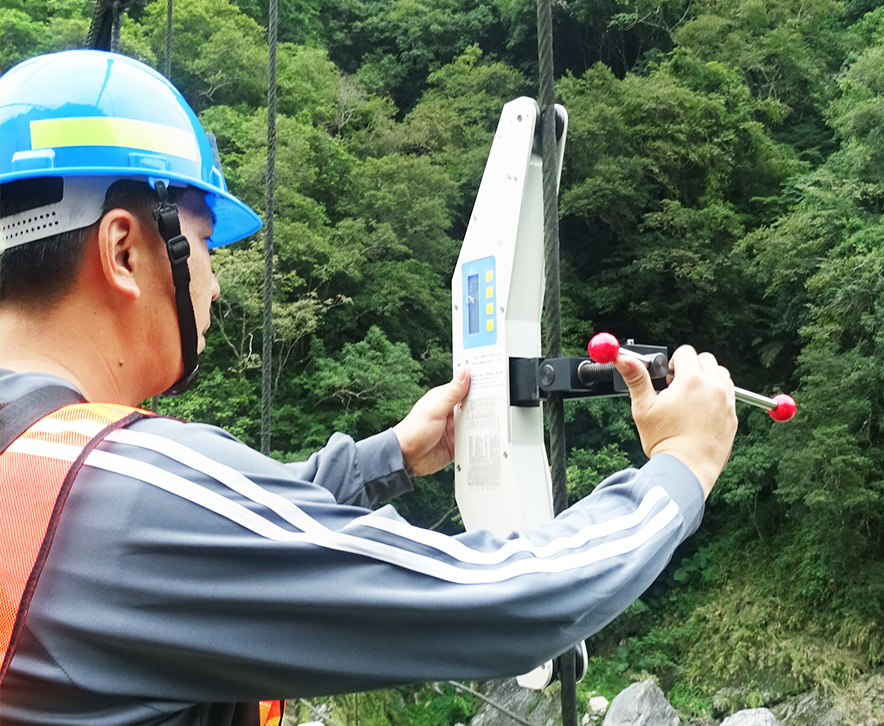

Suspension Bridge Inspection.

Early suspension bridges in Taiwan were primarily built to connect valleys or span streams, serving pedestrian and transportation needs.

In recent years, suspension bridges have increasingly become key attractions in tourist areas. Given the intense and prolonged usage, ensuring the structural safety and maintenance of these bridges is an important issue that warrants attention.
